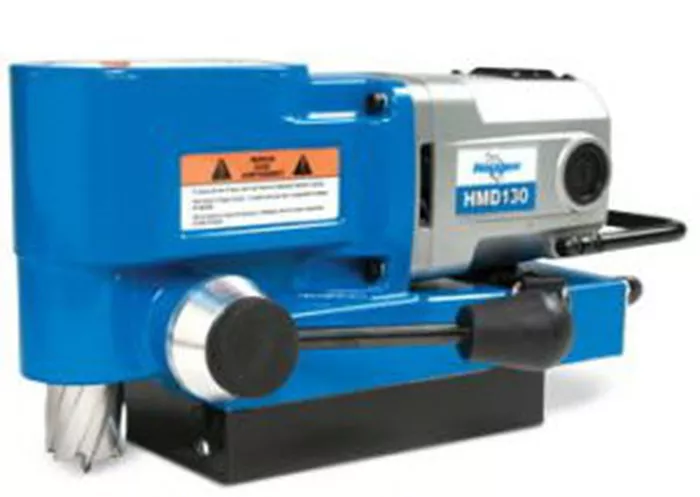

Dobco Equipment Ltd. has collaborated with Hougen Manufacturing, the inventor of the portable magnetic drill press, to bring high-performance industrial tools to the market, including the HMD130 ultra-low-profile magnetic drill. Designed for confined spaces, this compact yet powerful tool delivers efficient drilling with a lightweight design.
Key Features of the HMD130 Magnetic Drill
Powerful Motor: An 8-amp, 115-volt motor enables drilling of holes up to 1-3/8 inches in diameter.
High Torque & Smooth Operation: Patented quill feed arbor ensures minimal vibration and low maintenance.
Quick Cutter Changes: Bayonet-style twist-lock shank (RotaLoc Plus annular cutters) eliminates the need for additional tools.
Lightweight & Portable: Weighs only 10.8 kg, includes a carrying handle and case for easy transport.
Safety Systems:
Lift-detector shuts off the motor if the magnetic base is disengaged.
LED indicator alerts users if the safety switch is not engaged.
Two-stage power-on prevents accidental activation.
Performance & Applications
Base Plate Options:
25 mm plate: Dead lift rating of 982 kg, breakaway limit of 333 kg.
9.5 mm plate: Dead lift rating of 544 kg, breakaway limit of 227 kg.
Recommended Uses: General fabrication, truck-frame modifications, plant maintenance, and on-site assembly.
Additional Features
- Pilot light for visibility in low-light conditions.
- Positive slug ejection for cleaner operation.
- Side-switching feed handle and optional ratchet for versatility.
This drill combines power, safety, and portability, making it ideal for industrial applications requiring precision in tight spaces.
