In the world of woodworking, precision and efficiency are crucial. The right tools can make a significant difference in the quality of the finished product and the ease with which tasks are accomplished. One such essential tool for woodworking is the pillar drill. This article aims to provide a comprehensive understanding of what a pillar drill is, its features, how it works, its applications in woodworking, and why it is a valuable asset in any woodshop.
What is a Pillar Drill

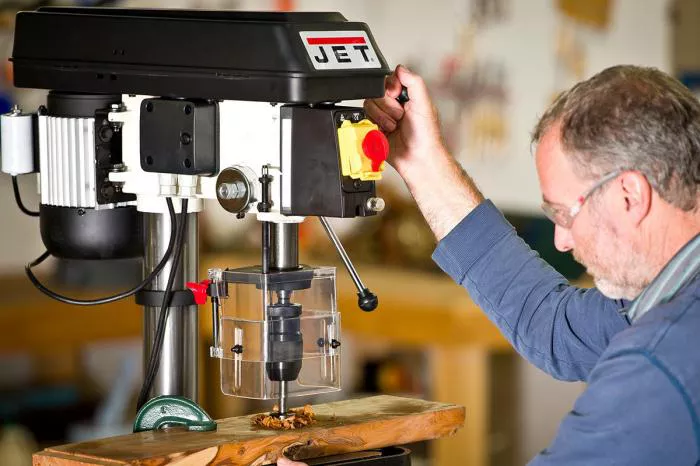

A pillar drill is a type of drill press that is mounted on a heavy – duty pillar or column. It is designed to provide a stable and accurate drilling platform for a wide range of materials, including wood. The main components of a pillar drill include the base, column, drill head, and table.
The base is the foundation of the pillar drill, providing stability and support. It is usually made of cast iron or a similar heavy – duty material, which helps to absorb vibrations during the drilling process. The column is a vertical rod that runs from the base to the top of the drill. It is used to support the drill head and the table, and it also serves as a guide for the drill bit, ensuring straight and accurate drilling.
The drill head contains the motor and the mechanism for controlling the rotation and downward movement of the drill bit. It is typically equipped with a variable – speed motor, which allows the operator to adjust the speed of the drill bit according to the type and hardness of the material being drilled. The table is a flat, horizontal surface that is attached to the column. It provides a stable platform for the workpiece and can be adjusted in height and angle to accommodate different drilling requirements.
Features of a Pillar Drill for Woodworking
High – precision drilling
One of the most significant advantages of a pillar drill is its ability to provide high – precision drilling. The guide column and the rigid construction of the drill head ensure that the drill bit moves in a straight line, resulting in accurate holes. This is especially important in woodworking, where precise measurements are crucial for the proper fit and function of the finished product. For example, when creating joints such as mortise and tenon or dowel joints, accurate holes are essential for a tight fit.
Stable operation
The heavy – duty base and column of a pillar drill provide a stable platform for the drilling process. This stability helps to reduce vibrations, which can cause inaccuracies in the drill holes and also damage the workpiece. In woodworking, where the workpieces can be delicate or uneven, a stable drill is necessary to prevent splintering or cracking of the wood.
Variable speed control
Most pillar drills come with a variable – speed motor. This feature allows the operator to adjust the speed of the drill bit according to the type and hardness of the wood being drilled. For softer woods, a higher speed may be used to quickly penetrate the material. For harder woods, a lower speed is more appropriate to prevent the drill bit from overheating and to ensure a clean, accurate hole.
Adjustable table
The adjustable table on a pillar drill is a valuable feature. It can be raised or lowered to accommodate different thicknesses of workpieces. Additionally, the table can often be tilted at an angle, which is useful for drilling holes at non – vertical angles. For example, when creating angled joints or drilling holes for decorative purposes, the adjustable table allows for greater flexibility in the drilling process.
Safety features
Pillar drills are designed with safety in mind. They usually come equipped with features such as a drill guard, which helps to protect the operator from flying debris, and an emergency stop button, which can be used to quickly shut off the drill in case of an emergency. These safety features are essential for preventing accidents in the woodshop.
How a Pillar Drill Works
Power transmission
The motor of the pillar drill is the power source. When the motor is turned on, it rotates the drive shaft. The drive shaft is connected to a series of gears, which transmit the power from the motor to the chuck. The chuck is a device that holds the drill bit in place. As the motor rotates, the power is transferred through the gears to the chuck, causing the drill bit to spin at high speed.
Drill bit movement
In addition to the rotational movement, the drill bit on a pillar drill can also move downward. This is achieved through a mechanism that is usually operated by a lever or a motor – driven feed system. When the operator activates the feed mechanism, the drill bit moves downward towards the workpiece, creating a hole. The speed and depth of the downward movement can be controlled by the operator to ensure accurate drilling.
Control and adjustment
The operator can control various aspects of the drilling process on a pillar drill. The speed of the drill bit can be adjusted using the variable – speed control, which is often a knob or a switch on the drill. The height of the table can be adjusted using manual or motorized controls, depending on the model of the pillar drill. The angle of the table can also be adjusted if the drill is equipped with a tilting table feature. These controls allow the operator to customize the drilling process to meet the specific requirements of the woodworking project.
Applications of Pillar Drills in Woodworking
Hole drilling for joinery
One of the most common applications of a pillar drill in woodworking is for drilling holes for joinery. As mentioned earlier, accurate holes are essential for creating strong and tight joints. Whether it is drilling holes for dowels, screws, or mortise and tenon joints, a pillar drill can provide the precision needed. For example, when making a set of chairs, the pillar drill can be used to drill holes in the legs and seat slats for the dowels that will hold the pieces together.
Making holes for hardware installation
Pillar drills are also used for making holes for the installation of hardware in woodworking projects. This can include holes for door hinges, drawer pulls, and cabinet hinges. The ability to accurately drill holes at the correct size and location is crucial for the proper installation and function of the hardware. A pillar drill allows the operator to quickly and accurately drill the necessary holes, saving time and ensuring a professional – looking finish.
Drilling large – diameter holes
For larger – diameter holes in wood, a pillar drill can be equipped with special drill bits such as hole saws or auger bits. These bits are designed to cut through wood efficiently and can create large, clean holes. This is useful for creating ventilation holes in furniture, installing pipes or conduits, or creating decorative features.
Repeating holes
If a woodworking project requires multiple holes of the same size and at the same location, a pillar drill is an ideal tool. Once the drilling settings have been established, the operator can quickly and accurately drill multiple holes without having to re – measure or adjust the drill each time. This is especially useful when mass – producing wooden products or when creating repetitive patterns in a project.
Comparing Pillar Drills with Other Drilling Tools in Woodworking
Compared to hand drills
Hand drills are portable and convenient, but they lack the precision and power of a pillar drill. Hand drills rely on the operator’s strength and skill to control the drilling process, which can lead to inaccuracies and uneven holes. In contrast, a pillar drill provides a stable and consistent drilling platform, ensuring accurate and clean holes. Additionally, hand drills may not be able to handle large – diameter drill bits or hard woods as effectively as a pillar drill.
Compared to drill presses for metal
Drill presses for metal are designed specifically for working with metal materials. While they can be used for drilling wood, they may not be as well – suited for woodworking tasks. Drill presses for metal often have a heavier and more rigid construction, which can make them less maneuverable in a woodshop. Additionally, they may not have the same level of adjustability for the table height and angle as a pillar drill, which is important for woodworking applications.
Advantages of Using a Pillar Drill in Woodworking
Time – saving
A pillar drill can significantly speed up the drilling process compared to other drilling methods. The ability to quickly adjust the settings and drill multiple holes accurately saves time, especially when working on larger woodworking projects. For example, when building a large cabinet, using a pillar drill to drill all the necessary holes for the shelves and joints can cut down on the overall construction time.
Quality improvement
The high – precision drilling capabilities of a pillar drill result in better – quality woodworking projects. Accurate holes ensure that the joints fit together properly, which not only improves the structural integrity of the piece but also enhances its appearance. A well – made woodworking project with clean, accurate holes is more likely to be a professional – looking and long – lasting piece.
Versatility
Pillar drills are versatile tools that can be used for a wide range of woodworking tasks. They can drill holes of different sizes, shapes, and at various angles, making them suitable for a variety of projects. Whether you are building furniture, making decorative items, or installing hardware, a pillar drill can be a valuable asset in your woodshop.
Maintenance and Care of a Pillar Drill
Regular cleaning
To keep a pillar drill in good working condition, it is important to clean it regularly. After each use, remove any sawdust, wood chips, or debris from the drill head, table, and base. This can be done using a brush or a vacuum cleaner. Cleaning the drill helps to prevent the build – up of dirt and debris, which can affect the performance and accuracy of the drill.
Lubrication
Some parts of the pillar drill, such as the moving parts of the feed mechanism and the gears, may require lubrication to operate smoothly. Use a suitable lubricant recommended by the manufacturer and apply it according to the instructions. Regular lubrication helps to reduce friction and wear on the parts, extending the life of the drill.
Blade and bit maintenance
Inspect the drill bits regularly for signs of wear or damage. Replace worn or damaged bits promptly to ensure accurate and efficient drilling. When changing the drill bit, make sure to follow the proper procedures for loosening and tightening the chuck to avoid damaging the drill.
Storage
When not in use, store the pillar drill in a dry and clean environment. Cover the drill with a dust cover to protect it from dust and debris. If possible, store the drill in a dedicated tool cabinet or on a shelf to prevent it from being knocked over or damaged.
Limitations of Pillar Drills in Woodworking
Size and space requirements
Pillar drills are relatively large and heavy tools, which require a significant amount of space in the woodshop. They may not be suitable for small home workshops or for woodworkers who have limited space. In addition, the large size of the pillar drill can make it difficult to move around the shop, which can be a disadvantage if you need to transport the drill to different work areas.
Cost
High – quality pillar drills can be expensive, especially those with advanced features and capabilities. This can be a barrier for some woodworkers, especially those who are just starting out or who have a limited budget. However, it is important to note that a good – quality pillar drill is a long – term investment that can pay off in terms of the quality and efficiency of your woodworking projects.
Limited portability
Unlike hand drills, pillar drills are not very portable. They are designed to be stationary tools, which means that they are not easily moved from one location to another. This can be a disadvantage if you work on projects at multiple locations or if you need to take your drill to a job site.
Conclusion
In conclusion, a pillar drill is an essential tool for woodworking that offers high – precision drilling, stable operation, and a range of useful features. It is well – suited for a variety of woodworking tasks, including hole drilling for joinery, hardware installation, and creating large – diameter holes. While it has some limitations in terms of size, cost, and portability, the advantages it offers in terms of quality, efficiency, and versatility make it a valuable asset in any woodshop. By understanding how a pillar drill works, its applications, and how to maintain it properly, woodworkers can take full advantage of this powerful tool to create high – quality woodworking projects. Overall, the pillar drill is a tool that can significantly enhance the woodworking experience and the final outcome of the projects.
