A hand panel saw is a fundamental tool in the world of woodworking and construction. It plays a crucial role in various projects, from building furniture to constructing wooden structures. Understanding the nature, features, and uses of a hand panel saw is essential for anyone interested in working with wood.
Definition and Basic Concept

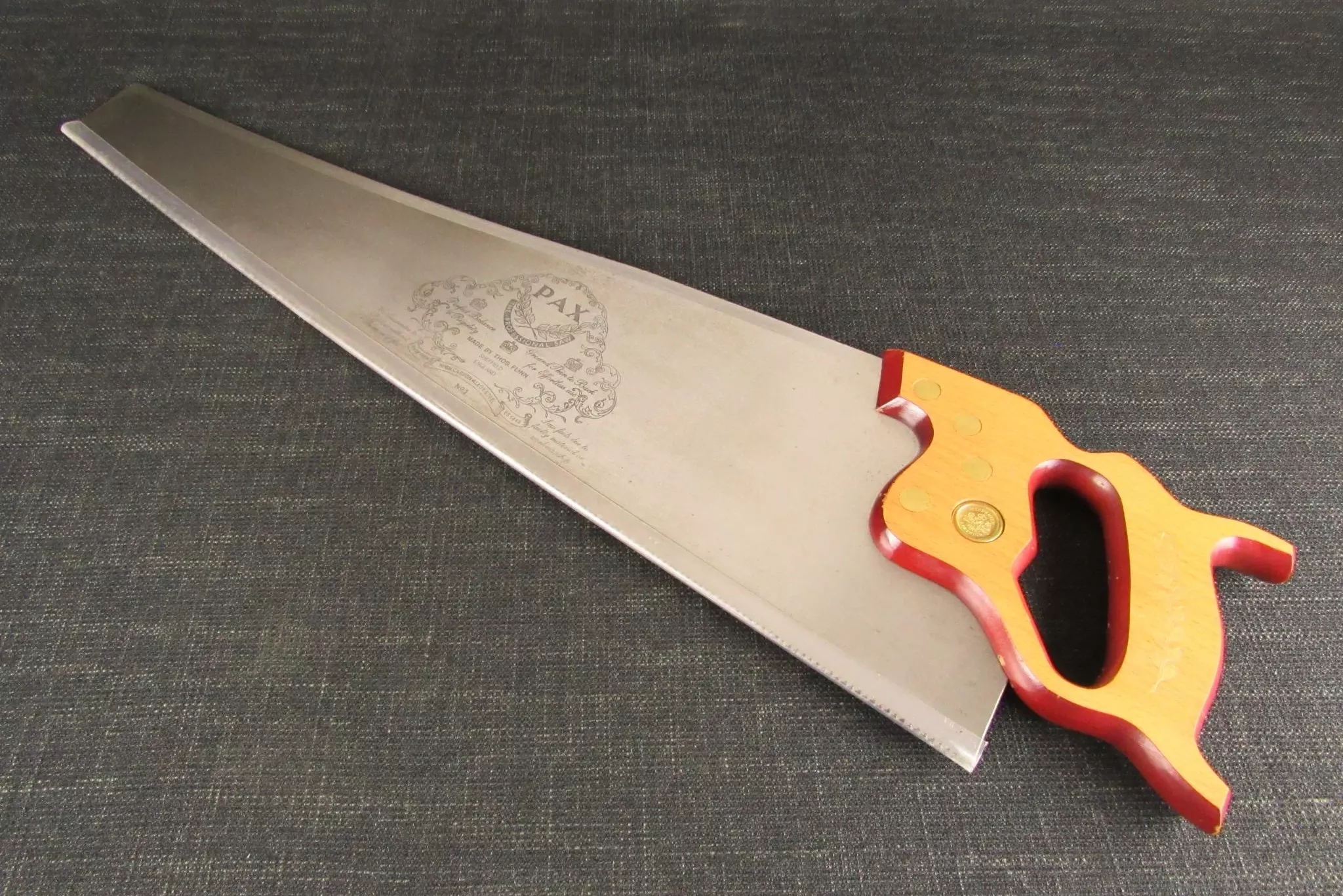

A hand panel saw is a hand – operated cutting tool designed specifically for cutting panels of wood. Unlike power saws that rely on electricity or other power sources, a hand panel saw is powered solely by the user’s physical effort. It typically consists of a long, narrow blade with sharp teeth, a handle at one end, and sometimes a metal or wooden frame for added stability.
The blade of a hand panel saw is usually made of high – carbon steel or a similar durable material. The teeth of the blade are carefully engineered to cut through wood efficiently. The size and shape of the teeth can vary depending on the type of wood the saw is intended to cut and the intended use of the saw. For example, a saw with larger teeth is better suited for rough cuts in softwood, while a saw with finer teeth is more appropriate for making precise cuts in hardwood.
Types of Hand Panel Saws
Rip – Cut Saws
Rip – cut hand panel saws are designed to cut wood along the grain. The teeth of a rip – cut saw are angled and have a specific shape that allows them to remove wood chips quickly as the saw is pulled through the wood. The cutting angle of rip – cut saw teeth is typically around 20 – 25 degrees. This type of saw is useful when you need to cut a panel of wood to a specific width, such as when creating boards for a wooden shelf or a table leg.
Cross – Cut Saws
Cross – cut hand panel saws, on the other hand, are used to cut wood across the grain. The teeth of a cross – cut saw are designed to sever the wood fibers cleanly. They are usually at a steeper angle, around 30 – 40 degrees, and have a more pointed shape compared to rip – cut saw teeth. Cross – cut saws are ideal for tasks such as cutting a panel into smaller pieces to form a frame or when you need to make precise angled cuts in wood.
Combination Saws
Combination hand panel saws are a hybrid of rip – cut and cross – cut saws. They are designed to handle both types of cuts to some extent. The teeth of a combination saw are a compromise between the two, allowing for relatively efficient cutting in both rip and cross directions. These saws are a good choice for DIY enthusiasts who need a single saw for general woodworking tasks and do not want to invest in separate rip – cut and cross – cut saws.
Features of a Hand Panel Saw
Blade Length
The length of the blade is an important feature of a hand panel saw. Longer blades generally allow for wider cuts, which is useful when working with large panels of wood. For example, a hand panel saw with a 24 – inch blade can be used to cut wider boards compared to a saw with a 16 – inch blade. However, longer blades also require more space to operate and may be more difficult to control for some users, especially when making precise cuts.
Blade TPI (Teeth Per Inch)
TPI refers to the number of teeth on the blade per inch of its length. A saw with a higher TPI will make finer cuts, which are ideal for tasks that require precision, such as cutting thin pieces of wood or making joints. For example, a cross – cut saw with a TPI of 12 – 16 is suitable for fine woodworking projects. A saw with a lower TPI, such as a rip – cut saw with a TPI of 5 – 8, is better for rough cuts in thicker wood as it can remove more material with each pass.
Handle Design
The handle of a hand panel saw is designed to provide a comfortable grip for the user. It should be ergonomically shaped to reduce hand fatigue during extended use. Some handles are made of wood, which provides a natural feel and good grip, while others may be made of plastic or metal. Additionally, some handles have textured surfaces or rubberized grips to further enhance the user’s ability to control the saw.
Blade Material and Coating
As mentioned earlier, the blade is usually made of high – carbon steel. High – carbon steel is strong and hard, allowing the blade to maintain its sharp edge during cutting. Some hand panel saws may have a blade coating, such as a titanium coating. This coating can increase the durability of the blade, reduce friction during cutting, and make it easier to clean the blade after use.
Frame or Open – Throat Design
Some hand panel saws come with a frame, which can be made of metal or wood. The frame provides additional support to the blade, making it more stable during cutting. This is especially useful when cutting thicker or harder panels of wood. Open – throat hand panel saws, on the other hand, do not have a frame. They are generally lighter and more portable, but may be less stable during cutting, especially on larger panels.
Working Principle
When a user pulls or pushes a hand panel saw through a panel of wood, the sharp teeth of the blade engage with the wood fibers. The teeth cut into the wood by severing the fibers, and as the saw is moved, a cut is gradually made. The direction of the cut depends on the type of saw (rip or cross) and the angle at which the saw is being used.
In a rip – cut, the user pulls the saw along the length of the wood, following the direction of the grain. The teeth of the rip – cut saw remove small amounts of wood as they move through the board, creating a relatively smooth cut along the grain. In a cross – cut, the user pushes or pulls the saw across the width of the wood, perpendicular to the grain. The pointed teeth of the cross – cut saw sever the wood fibers cleanly, resulting in a more precise cut across the grain.
Applications in Woodworking
Furniture Making
In furniture making, a hand panel saw is an essential tool. It is used to cut the various components of a piece of furniture, such as the legs, shelves, and tabletops. For example, when making a wooden table, a hand panel saw can be used to cut the boards to the appropriate length for the tabletop and the legs. The precision of a hand panel saw allows furniture makers to create joints that fit together perfectly, resulting in a sturdy and well – crafted piece of furniture.
Cabinetry
Cabinetry also relies heavily on hand panel saws. Cabinetmakers use them to cut the panels for the sides, fronts, and shelves of cabinets. The ability to make precise cuts is crucial in cabinetry, as the fit of the panels and the overall appearance of the cabinets depend on it. A hand panel saw can be used to create decorative cuts, such as beveled edges or rabbet joints, which add to the aesthetic appeal of the cabinets.
General Woodworking Projects
For general woodworking projects, such as building birdhouses, picture frames, or small shelves, a hand panel saw is a versatile tool. It allows hobbyists to work with wood in a hands – on way, creating customized projects. The simplicity of a hand panel saw makes it accessible to beginners, and its portability allows for use in a variety of locations, from a home workshop to a job site.
Construction
In the construction industry, hand panel saws are used in wood – framed construction. They are used to cut lumber for framing walls, floors, and roofs. While power saws are more commonly used in large – scale construction projects, hand panel saws can be useful for making precise cuts in smaller pieces of wood, such as trim or molding. They are also a good backup tool in case of power outages or when working in areas where power tools are not practical.
Maintenance of a Hand Panel Saw
Cleaning
Regular cleaning is essential to keep a hand panel saw in good working condition. After each use, the saw should be wiped down with a clean, dry cloth to remove any sawdust or debris. If the blade is particularly dirty, it can be cleaned with a mild soapy solution and a soft brush. It is important to avoid using harsh chemicals or abrasive materials that could damage the blade or the handle.
Blade Sharpening
The blade of a hand panel saw needs to be sharpened periodically to maintain its cutting efficiency. There are several methods for sharpening a saw blade, including using a file, a sharpening stone, or a motorized sharpener. When sharpening a saw blade, it is important to follow the correct technique to ensure that the teeth are sharpened evenly. Improper sharpening can lead to a poor – quality cut and can damage the blade further.
Lubrication
Some hand panel saws, especially those with metal frames or moving parts, may require lubrication. A light oil can be applied to the joints or moving parts of the frame to reduce friction and prevent rust. However, care should be taken not to over – lubricate, as excess oil can attract dirt and debris, making the saw more difficult to clean.
Storage
Proper storage is also important for the longevity of a hand panel saw. The saw should be stored in a dry place, away from moisture and direct sunlight. It can be hung on a wall or placed in a tool chest. If the saw has a blade cover, it should be used to protect the blade from damage and to prevent accidental cuts.
Comparison with Power Saws
Power and Speed
Power saws have the advantage of speed and power. They can make cuts much faster than a hand panel saw, which is useful for large – scale projects or when time is a constraint. For example, a circular saw can cut through a thick piece of wood in a matter of seconds, while a hand panel saw may take several minutes to make the same cut.
However, the power of a hand panel saw comes from the user’s own strength, which can be an advantage in some situations. For example, when working in an area where there is no access to power, such as a remote cabin or a live – in art studio, a hand panel saw is the only option. Additionally, some woodworkers prefer the control that a hand panel saw provides, especially when making fine cuts.
Precision
As mentioned earlier, hand panel saws can be very precise, especially when it comes to making fine cuts. The user has complete control over the saw, allowing for precise angle adjustments and clean cuts. Power saws, on the other hand, can be less precise, especially if they are not properly calibrated or if the blade is worn. However, high – quality power saws with advanced features, such as laser guides and dust collection systems, can also achieve a high level of precision.
Portability
Hand panel saws are highly portable. They are lightweight and can be easily carried in a toolbox or a bag. This makes them ideal for on – the – go projects or for woodworkers who need to move their tools between different locations. Power saws, on the other hand, are generally bulkier and heavier. While some power saws are portable, they still require a power source, which may limit their portability in certain situations.
Learning to Use a Hand Panel Saw
Proper Grip and Stance
When using a hand panel saw, it is important to have a proper grip and stance. The user should grip the handle firmly but not too tightly, with the thumb resting on the side of the handle for added control. The stance should be stable, with the feet shoulder – width apart and the body positioned in a way that allows for a smooth, controlled motion of the saw.
Cutting Techniques
To make a straight cut, the user should start by marking the cut line on the panel of wood. Then, place the blade of the saw on the cut line and start the cut with a few short, light strokes. Once the saw has started to cut into the wood, the user can increase the pressure and make longer, smoother strokes. It is important to keep the saw blade perpendicular to the wood surface to ensure a straight cut.
For making angled cuts, the user can use a miter box or a protractor to set the desired angle. The saw is then placed in the miter box or held at the appropriate angle, and the cut is made in the same way as a straight cut.
Safety Precautions
Safety is of utmost importance when using a hand panel saw. The user should always wear safety glasses to protect their eyes from flying sawdust and debris. It is also a good idea to wear ear protection, especially if working with a saw for an extended period of time. Additionally, the user should be aware of the location of their fingers and keep them away from the blade at all times. Never force the saw to cut; if the saw is not cutting smoothly, it may be due to a dull blade or an incorrect cutting technique, and the user should stop and address the issue before continuing.
Conclusion
A hand panel saw is a versatile and essential tool in the world of woodworking and construction. With its various types, unique features, and specific applications, it offers woodworkers and DIY enthusiasts the ability to make precise cuts in wood. While it may not be as fast or powerful as power saws, its portability, control, and precision make it a valuable tool for a wide range of projects.
The maintenance of a hand panel saw is relatively simple, but it is crucial for ensuring its longevity and performance. Regular cleaning, blade sharpening, lubrication, and proper storage can keep the saw in good working condition.
