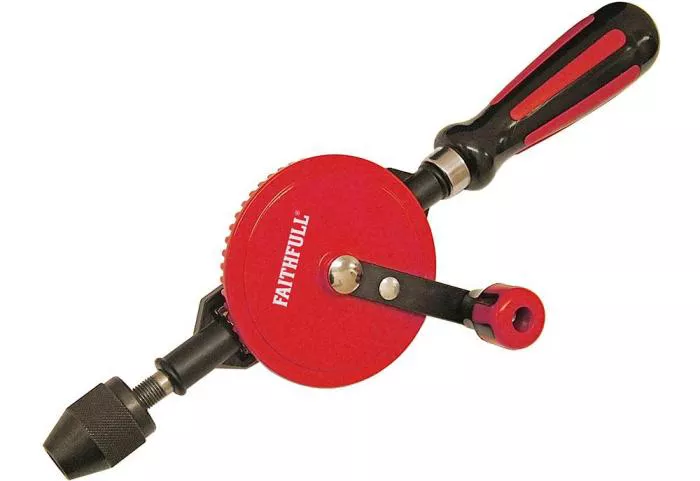

A hand drill is a fundamental and versatile tool that has been used for centuries in various industries and DIY projects. It is a mechanical device designed to create holes in different materials such as wood, metal, plastic, and concrete. The basic principle of a hand drill involves converting the rotational force applied by the user into a drilling motion that can penetrate the target material. This simple yet effective mechanism has made hand drills an indispensable tool in the toolkit of tradespeople, hobbyists, and homeowners alike.
The history of hand drills dates back to ancient times when early humans used primitive methods to create holes in materials. Over the centuries, hand drills have evolved significantly, with advancements in design, materials, and technology leading to more efficient and precise tools. Today, hand drills are available in a wide range of types, sizes, and features, catering to different needs and applications.
Types of Hand Drills
Hand-Crank Drills
Hand-crank drills are one of the oldest and simplest types of hand drills. They consist of a hand crank that is turned manually to rotate the drill bit. These drills are typically lightweight and easy to use, making them suitable for small-scale projects and light-duty tasks. Hand-crank drills are often used for drilling holes in wood, plastic, and soft metals.
One of the advantages of hand-crank drills is their simplicity. They do not require any external power source, making them ideal for use in remote areas or situations where electricity is not available. However, they are limited in terms of power and speed, which can make them less suitable for drilling through hard materials or for large-scale projects.
Bow Drills
Bow drills are another traditional type of hand drill that has been used for centuries. They consist of a bow, a spindle, a hearth board, and a socket. The bow is used to rotate the spindle, which is placed in a socket on the hearth board. By applying downward pressure on the spindle and moving the bow back and forth, the user can create enough friction to ignite a fire or drill a hole.
Although bow drills are not commonly used for drilling holes in modern times, they are still used in some survival situations and for traditional crafts. They are a great example of the ingenuity and resourcefulness of early humans in using simple tools to achieve their goals.
Brace and Bit Drills
Brace and bit drills are a more advanced type of hand drill that was widely used in the past for woodworking and other applications. They consist of a U-shaped frame called a brace, which holds a drill bit in place. The user turns the brace handle to rotate the drill bit, which is guided by a chuck that can be adjusted to hold different sizes of bits.
Brace and bit drills are known for their durability and precision. They can be used to drill deep holes in wood and other materials, and the adjustable chuck allows for a wide range of bit sizes. However, they are relatively heavy and require more effort to operate than some other types of hand drills.
Eggbeater Drills
Eggbeater drills are small, handheld drills that resemble an eggbeater in appearance. They consist of a handle that is turned in a circular motion to rotate the drill bit. Eggbeater drills are typically used for light-duty tasks such as drilling small holes in wood, plastic, and metal.
One of the advantages of eggbeater drills is their portability and ease of use. They are lightweight and can be easily carried around, making them ideal for small DIY projects and repairs. However, they are limited in terms of power and speed, which can make them less suitable for heavy-duty tasks.
Auger Drills
Auger drills are large, spiral-shaped drills that are used for drilling deep holes in wood and other materials. They consist of a long, spiral-shaped bit that is attached to a handle or a power source. The user turns the handle or uses a power source to rotate the bit, which cuts through the material and removes the debris as it drills.
Auger drills are known for their efficiency and ability to drill deep holes quickly. They are commonly used in construction, woodworking, and other industries where deep holes are required. However, they are relatively large and heavy, which can make them difficult to handle for some users.
Components of a Hand Drill
Drill Bit
The drill bit is the most important component of a hand drill. It is the cutting tool that is used to create the hole in the material. Drill bits come in a wide range of sizes, shapes, and materials, depending on the type of material being drilled and the size of the hole required.
Common types of drill bits include twist drills, spade bits, hole saws, and auger bits. Twist drills are the most commonly used type of drill bit and are suitable for drilling holes in a wide range of materials. Spade bits are used for drilling large holes in wood, while hole saws are used for cutting circular holes in metal, wood, and plastic. Auger bits are used for drilling deep holes in wood and other materials.
Chuck
The chuck is the component of a hand drill that holds the drill bit in place. It is a clamp-like device that can be adjusted to hold different sizes of drill bits. The chuck is typically located at the end of the drill shaft and is tightened or loosened using a key or a manual mechanism.
There are different types of chucks available, including keyed chucks and keyless chucks. Keyed chucks require a key to tighten or loosen the jaws, while keyless chucks can be adjusted by hand. Keyless chucks are more convenient and easier to use, but they may not provide as tight a grip as keyed chucks.
Handle
The handle is the part of the hand drill that the user grips and turns to rotate the drill bit. It is designed to provide a comfortable and secure grip, reducing the risk of hand fatigue and injury. Handles can be made from a variety of materials, including wood, plastic, and rubber.
Some hand drills have ergonomic handles that are designed to fit the shape of the user’s hand, providing a more comfortable grip. Others may have rubberized grips that provide additional traction and reduce the risk of slipping.
Gear Mechanism
The gear mechanism is responsible for transmitting the rotational force from the handle to the drill bit. It typically consists of a set of gears that are arranged in a specific configuration to increase or decrease the speed and torque of the drill bit.
Hand drills may have different types of gear mechanisms, including single-speed, two-speed, and variable-speed gears. Single-speed drills have a fixed speed, while two-speed drills allow the user to select between two different speeds. Variable-speed drills allow the user to adjust the speed continuously, providing more control over the drilling process.
Working Principle of a Hand Drill
The working principle of a hand drill is based on the conversion of rotational force into a drilling motion. When the user turns the handle of the hand drill, the gear mechanism transmits the rotational force to the drill bit. The drill bit then rotates at a high speed, cutting through the material and creating a hole.
As the drill bit rotates, it removes the debris from the hole through a process called chip removal. Different types of drill bits have different chip removal mechanisms. For example, twist drills have flutes that allow the chips to be removed from the hole as the drill bit rotates. Auger bits have a helical screw that carries the chips out of the hole.
The amount of force required to drill a hole depends on several factors, including the hardness of the material, the size of the drill bit, and the type of drill bit being used. Harder materials require more force to drill through, while larger drill bits require more torque to rotate. The type of drill bit also affects the amount of force required, as some drill bits are designed to be more efficient and require less force than others.
Applications of Hand Drills
Woodworking
Hand drills are widely used in woodworking for drilling holes in wood for various purposes, such as inserting screws, dowels, and hinges. They are also used for creating decorative holes and patterns in wood. Hand drills are particularly useful for small-scale woodworking projects, such as building furniture, toys, and crafts.
Metalworking
Hand drills can also be used for drilling holes in metal. However, drilling through metal requires more force and a harder drill bit than drilling through wood. Metalworking hand drills are typically designed to handle harder materials and may have specialized drill bits and gear mechanisms to make the drilling process easier.
Construction
In the construction industry, hand drills are used for a variety of tasks, such as drilling holes in concrete, masonry, and wood for anchoring, wiring, and plumbing. Auger drills are commonly used for drilling deep holes in wood and other materials, while hammer drills are used for drilling into concrete and masonry.
DIY Projects
Hand drills are a popular tool for DIY enthusiasts, as they are relatively inexpensive and easy to use. They can be used for a wide range of projects, such as home repairs, renovation, and custom furniture building. Hand drills are also useful for creating holes for mounting shelves, hanging pictures, and installing lights.
Advantages of Hand Drills
Portability
One of the main advantages of hand drills is their portability. They are lightweight and easy to carry around, making them ideal for use in different locations. Hand drills do not require any external power source, so they can be used anywhere, whether you are working in a workshop, a construction site, or your own home.
Cost-Effective
Hand drills are generally less expensive than power drills, making them a cost-effective option for small-scale projects and DIY tasks. They are also easy to maintain and do not require any specialized tools or equipment.
Control and Precision
Hand drills give the user more control and precision over the drilling process. The user can adjust the speed and pressure of the drill bit to achieve the desired result, which is particularly useful for delicate or precise tasks. Hand drills are also less likely to cause damage to the surrounding material, as the user can control the depth and angle of the drill bit more easily.
Disadvantages of Hand Drills
Limited Power
One of the main disadvantages of hand drills is their limited power. They are not as powerful as power drills and may not be able to drill through hard materials or create large holes. Hand drills require more effort to operate, which can be tiring for the user, especially for large-scale projects.
Time-Consuming
Drilling with a hand drill can be a time-consuming process, especially for large holes or hard materials. The user has to turn the handle manually, which can be slow and laborious. This can be a disadvantage for projects that require a lot of drilling or for users who need to complete the task quickly.
Maintenance and Care of Hand Drills
Proper maintenance and care are essential to keep a hand drill in good working condition and extend its lifespan. Here are some tips for maintaining and caring for your hand drill:
Cleaning
After each use, clean the hand drill thoroughly to remove any debris, dust, or dirt that may have accumulated on the drill bit, chuck, and other components. Use a soft brush or a cloth to clean the drill, and wipe it down with a dry cloth to prevent rust and corrosion.
Lubrication
Lubricate the moving parts of the hand drill, such as the chuck and the gear mechanism, to reduce friction and wear. Use a suitable lubricant, such as machine oil or silicone spray, and apply it sparingly to the components.
Storage
Store the hand drill in a dry and cool place, away from moisture and extreme temperatures. Keep the drill in a protective case or cover to prevent dust and debris from accumulating on it. If possible, hang the drill on a hook or a rack to keep it off the ground and prevent it from being damaged.
Inspection
Inspect the hand drill regularly for signs of wear and tear, such as loose screws, damaged gears, or worn drill bits. Replace any damaged or worn components promptly to prevent further damage to the drill.
Conclusion
In conclusion, a hand drill is a versatile and essential tool that has been used for centuries in various industries and DIY projects. It is a simple yet effective tool that allows users to create holes in different materials with ease. There are different types of hand drills available, each with its own unique features and advantages, making them suitable for different applications.
