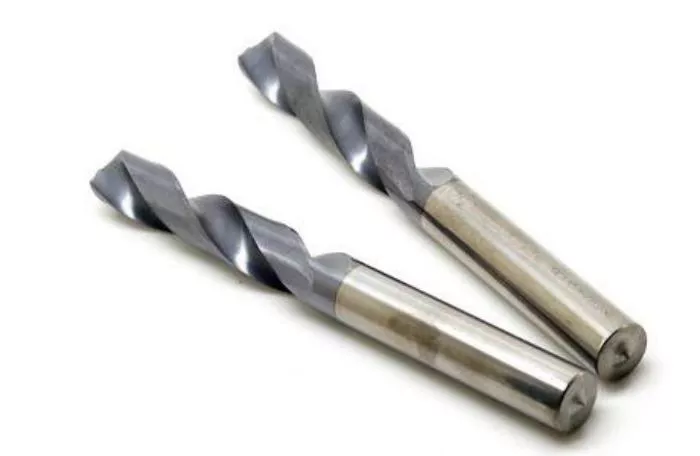

In the world of drilling tools, stub drill bits occupy a unique and important position. These relatively short drill bits, as the name implies, have a stubby appearance compared to their longer counterparts. Understanding their specific uses, advantages, and limitations is essential for anyone involved in drilling operations, whether in a professional workshop, on a construction site, or in a DIY project at home. This article delves deep into the various aspects of stub drill bits, exploring their design features, applications, and the reasons why they are a valuable addition to many toolkits.
Design and Construction of Stub Drill Bits
Geometry
Stub drill bits are characterized by their short overall length and relatively large flute length. The flute is the spiral groove on the drill bit that helps in chip removal during the drilling process. A longer flute length on stub drill bits allows for efficient evacuation of chips, preventing them from accumulating inside the hole and potentially damaging the bit or the workpiece. The cutting edges of stub drill bits are also carefully designed to ensure sharpness and durability. They are typically made of high – speed steel (HSS), carbide, or other hard materials that can withstand the high pressures and temperatures generated during drilling.
Shank
The shank of a stub drill bit is the part that is gripped by the drill chuck. It can be straight or tapered, depending on the type of drill and the application. Straight shanks are commonly used in hand drills and some power drills, while tapered shanks are often used in lathes and other machine tools. The diameter of the shank is usually slightly smaller than the diameter of the drill bit itself, allowing for a secure fit in the chuck.
Coating
Many stub drill bits are coated with special materials to enhance their performance. Common coatings include titanium nitride (TiN), titanium carbonitride (TiCN), and black oxide. These coatings reduce friction between the drill bit and the workpiece, increase the bit’s resistance to wear, and improve its heat – resistance properties. As a result, the drill bit can operate at higher speeds and drill more holes before it needs to be replaced.
Advantages of Stub Drill Bits
High Rigidity
One of the main advantages of stub drill bits is their high rigidity. Due to their short length, they are less likely to bend or deflect during the drilling process. This is especially important when drilling deep holes or drilling through hard materials, as a bent or deflected drill bit can cause the hole to be misaligned or have an uneven diameter. The high rigidity of stub drill bits also allows for more precise drilling, with less variation in the hole depth and diameter.
Better Chip Ejection
The long flute length on stub drill bits ensures efficient chip ejection. As the drill bit cuts through the workpiece, the chips are carried up the flute and out of the hole. This helps to prevent the chips from accumulating inside the hole, which can cause the drill bit to overheat, reduce its cutting efficiency, and damage the workpiece. Efficient chip ejection also allows for faster drilling speeds, as the drill bit can operate without being hindered by a build – up of chips.
Suitable for Restricted Spaces
Stub drill bits are ideal for use in restricted spaces. Their short length allows them to reach into areas where longer drill bits cannot fit. This makes them useful for drilling holes in tight corners, inside machinery, or in areas with limited access. For example, in the automotive industry, stub drill bits are often used to drill holes in engine blocks and other components where space is limited.
Common Applications of Stub Drill Bits
Automotive Industry
In the automotive industry, stub drill bits are used for a variety of tasks. They are commonly used to drill holes in engine components, such as cylinder heads, engine blocks, and transmission cases. These holes are used for installing fasteners, such as bolts and studs, as well as for routing coolant, oil, and other fluids. Stub drill bits are also used in the assembly of automotive body parts, such as drilling holes for door handles, hinges, and headlights.
Aerospace Industry
The aerospace industry has strict requirements for drilling operations due to the high – performance and safety – critical nature of aircraft components. Stub drill bits are used to drill holes in aircraft structural components, such as wings, fuselages, and landing gear. The high rigidity and precision of stub drill bits ensure that the holes are drilled accurately and meet the tight tolerances required in the aerospace industry. They are also used for drilling holes in engine components, such as turbine blades and compressor disks.
Construction Industry
In the construction industry, stub drill bits are used for drilling holes in concrete, masonry, and other hard materials. They are commonly used by masons and contractors to install anchors, brackets, and other fasteners in walls, floors, and ceilings. Stub drill bits are also used in the installation of electrical and plumbing systems, as they can quickly and accurately drill holes for wiring and piping.
DIY Projects
Stub drill bits are a popular choice for DIY enthusiasts. They are used for a wide range of projects, such as home repairs, furniture building, and small machinery assembly. For example, a DIYer might use a stub drill bit to drill holes in a piece of wood to install cabinet hinges or to drill a hole in a metal rod for a homemade project. The affordability and availability of stub drill bits make them a convenient tool for DIY projects.
Electronics Industry
In the electronics industry, stub drill bits are used for drilling holes in printed circuit boards (PCBs). These holes are used for mounting components such as resistors, capacitors, and integrated circuits on the PCB. The precision and small size of stub drill bits allow for the drilling of very small holes, which is essential for modern electronics where component sizes are constantly decreasing.
Drilling Techniques for Stub Drill Bits
Selecting the Right Drill Bit Size
When using a stub drill bit, it is important to select the right size for the job. The size of the drill bit should match the diameter of the hole you want to drill. Using a drill bit that is too small will result in a hole that is not large enough, while using a drill bit that is too large will waste material and may not provide a secure fit for the fastener or component.
Drilling Speed and Feed Rate
The drilling speed and feed rate are critical factors in achieving a successful drilling operation with stub drill bits. The drilling speed refers to the rotational speed of the drill bit, while the feed rate refers to the rate at which the drill bit is advanced into the workpiece. For stub drill bits, the drilling speed and feed rate should be adjusted according to the material being drilled. Harder materials require slower drilling speeds and lower feed rates to prevent the drill bit from overheating and wearing out too quickly.
Coolant and Lubrication
Using a coolant or lubricant when drilling with stub drill bits can significantly improve the drilling performance and extend the life of the drill bit. Coolants help to reduce the heat generated during the drilling process, which can prevent the drill bit from warping and extend its lifespan. Lubricants reduce the friction between the drill bit and the workpiece, making it easier for the drill bit to cut through the material. Common coolants and lubricants include water – based coolants, oil – based lubricants, and synthetic lubricants.
Chip Removal
As mentioned earlier, efficient chip removal is essential when using stub drill bits. During the drilling process, chips should be continuously removed from the hole to prevent them from accumulating and causing problems. This can be done by periodically withdrawing the drill bit from the hole and clearing out the chips, or by using a chip removal device such as a vacuum or a chip brush.
Advantages over Longer Drill Bits
Reduced Risk of Breakage
Longer drill bits are more prone to breakage due to their increased length and flexibility. A slight bend or vibration during the drilling process can cause a longer drill bit to break, which can be dangerous and costly. Stub drill bits, on the other hand, are shorter and more rigid, reducing the risk of breakage.
Greater Accuracy
The short length of stub drill bits allows for more precise drilling. They are less affected by vibration and deflection, resulting in straighter and more accurate holes. This is especially important in applications where the accuracy of the hole is critical, such as in the aerospace and automotive industries.
Faster Drilling in Some Cases
Due to their high rigidity and efficient chip – ejection capabilities, stub drill bits can often drill faster than longer drill bits in certain materials. They can maintain a consistent cutting speed and do not experience the same level of resistance as longer drill bits, which can slow down the drilling process.
Limitations of Stub Drill Bits
Limited Reach
The main limitation of stub drill bits is their limited reach. They are not suitable for drilling deep holes or reaching into areas that are far from the drilling access point. If a deep hole needs to be drilled, a longer drill bit or a step – drilling process may be required.
Less Suitable for Soft Materials
Stub drill bits may not be the best choice for drilling soft materials such as plastic or wood. Their sharp cutting edges can cause the material to splinter or crack, especially if the drilling speed is too high. In these cases, a drill bit with a different design, such as a spade bit or a brad – point bit, may be more appropriate.
Maintenance and Care of Stub Drill Bits
Cleaning
After each use, stub drill bits should be cleaned to remove any chips, dirt, or coolant. This can be done by wiping the drill bit with a clean cloth or using a brush to remove debris from the flutes. Regular cleaning helps to prevent the build – up of contaminants on the drill bit, which can reduce its performance and lifespan.
Inspection
Periodically inspect the stub drill bits for signs of wear and damage. Check the cutting edges for dullness, chips, or cracks. Also, inspect the shank for any signs of deformation or damage. If any damage is detected, the drill bit should be replaced to prevent it from causing problems during the drilling process.
Sharpening
When the cutting edges of a stub drill bit become dull, it may be necessary to sharpen them. This can be done using a bench grinder or a drill bit sharpener. However, it is important to follow the manufacturer’s instructions carefully when sharpening a drill bit to ensure that the cutting edges are properly sharpened and the drill bit maintains its original geometry.
Storage
Proper storage of stub drill bits is essential to prevent damage and extend their lifespan. Drill bits should be stored in a dry and clean environment, away from moisture and other corrosive substances. They can be stored in a drill bit holder or a toolbox to keep them organized and protected.
Conclusion
In conclusion, stub drill bits are versatile and valuable tools in the world of drilling. Their high rigidity, efficient chip – ejection capabilities, and suitability for restricted spaces make them suitable for a wide range of applications in industries such as automotive, aerospace, construction, electronics, and DIY. While they have some limitations, such as limited reach and less suitability for soft materials, their advantages often outweigh their drawbacks when used in the appropriate applications. By following proper drilling techniques, maintenance, and care procedures, users can ensure that their stub drill bits perform at their best and last for a long time.
