In the world of construction, renovation, and various industrial applications, the need for efficient and powerful tools is paramount. Among the wide array of tools available, the spline rotary hammer stands out as a specialized and versatile power – tool. This article aims to delve deep into the intricacies of the spline rotary hammer, exploring its design, functionality, applications, and advantages over other similar tools.
Understanding the Basics of a Spline Rotary Hammer
Definition and Core Concept

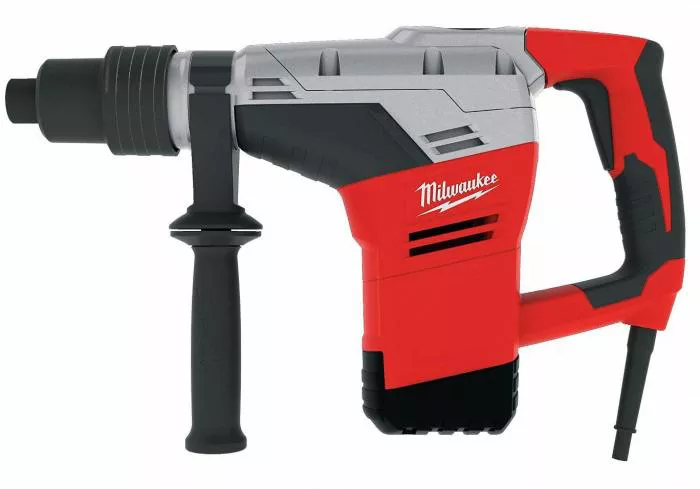

A spline rotary hammer is a type of power tool designed for heavy – duty drilling and chiseling tasks. The term “spline” in its name refers to the unique connection mechanism between the motor and the hammering mechanism. Unlike traditional rotary hammers that may use other types of connections, a spline connection provides a more robust and secure transfer of power, which is crucial for the high – impact operations that these tools are designed for.
The core function of a spline rotary hammer is to combine rotational and hammering motions. The rotational motion allows the tool to drill into materials, while the hammering motion provides the force needed to break through tough substances such as concrete, masonry, and stone. This combination of motions makes it a highly effective tool for applications where simply drilling or chiseling alone would be insufficient.
Key Components
Motor
The motor is the heart of the spline rotary hammer. It provides the power necessary to drive both the rotational and hammering mechanisms. Spline rotary hammers typically use electric motors, which can be either corded or cordless. Corded models draw power directly from an electrical outlet, providing continuous and reliable power. Cordless models, on the other hand, are powered by rechargeable batteries, offering greater portability and flexibility, especially in situations where access to an electrical outlet is limited.
The power rating of the motor is an important consideration when choosing a spline rotary hammer. A higher – powered motor can handle more demanding tasks, such as drilling large – diameter holes in thick concrete. However, it also means a larger and heavier tool, so the power – to – weight ratio is also a crucial factor to balance.
Hammering Mechanism
The hammering mechanism is what sets the spline rotary hammer apart from regular drills. It is responsible for the high – impact blows that break through the material. There are different types of hammering mechanisms available, but the most common ones in spline rotary hammers are the electromechanical and percussion systems.
In an electromechanical hammering system, an electric motor drives a series of gears and cams that convert the rotational motion into a linear, hammering motion. This system is highly efficient and can provide a consistent and powerful hammering action.
The percussion system, on the other hand, uses a hammer – like mechanism that strikes a steel piston. The impact is then transferred to the drill bit, causing it to hammer into the material. This type of system can generate very high impact forces, making it suitable for the toughest drilling and chiseling jobs.
Chuck and Spline Connection
The chuck is the part of the tool that holds the drill bit in place. In a spline rotary hammer, the chuck is designed to be compatible with a variety of drill bit sizes and types. It provides a secure grip on the bit, ensuring that it remains firmly in place during high – speed drilling and hammering operations.
The spline connection between the motor and the hammering mechanism is a key design feature. It consists of a series of splines or teeth on the motor shaft and the corresponding grooves on the hammering mechanism shaft. These splines engage with each other, providing a strong and stable connection that can withstand the high – torque and impact forces generated during operation. This connection not only ensures efficient power transfer but also helps to reduce the risk of damage to the tool.
Housing and Ergonomics
The housing of a spline rotary hammer serves multiple purposes. It protects the internal components from dust, debris, and moisture, which are common in construction and industrial environments. At the same time, the housing is designed to be comfortable to hold and operate.
Ergonomics is an important consideration in the design of the housing. A well – designed housing will have a contoured shape that fits comfortably in the user’s hand, reducing hand fatigue during long – term use. It may also have rubberized grips or other features to enhance the user’s grip and control of the tool. Additionally, the housing may have ventilation ports to dissipate heat generated by the motor during operation.
How a Spline Rotary Hammer Works
The Drilling Process
When using a spline rotary hammer for drilling, the motor starts to rotate the drill bit. At the same time, the hammering mechanism begins to generate the high – impact blows. The drill bit enters the material, and the rotational motion helps the bit to cut into the material, while the hammering action fractures the material in front of the bit, allowing it to be removed.
The combined effect of the rotational and hammering motions enables the spline rotary hammer to drill through hard materials such as concrete and masonry much faster and more efficiently than a regular drill. The drill bit is designed specifically for these hard materials, with special cutting edges and flutes that help to remove the debris as the bit drills through.
The Chiseling Process
In the chiseling mode, the hammering action takes precedence over the rotational motion. The user can adjust the tool to focus more on the hammering function. The high – impact blows of the hammering mechanism are used to break off pieces of concrete, tile, or other hard materials. This is useful for tasks such as demolishing walls, removing old fixtures, or shaping stone.
The user can control the depth and extent of the chiseling by the force and frequency of the blows. By applying the right amount of pressure and adjusting the chiseling angle, the spline rotary hammer can be used to achieve precise chiseling results.
Applications of Spline Rotary Hammers
Construction Industry
In the construction industry, spline rotary hammers are widely used for a variety of tasks. They are essential for drilling holes in concrete foundations, walls, and floors for the installation of electrical wiring, plumbing pipes, and HVAC systems. The ability to drill through thick and hard concrete structures quickly and accurately makes them a valuable tool for construction workers.
Spline rotary hammers are also used for chiseling and breaking up concrete during renovation and demolition projects. They can be used to remove old tiles, bricks, and other building materials, as well as to shape and cut concrete for new construction projects. For example, when building a new staircase or doorway, a spline rotary hammer can be used to cut and shape the concrete to the required specifications.
Renovation and Home Improvement
For homeowners and DIY enthusiasts, spline rotary hammers can be a useful tool for various renovation and home improvement projects. They can be used to drill holes in concrete walls for hanging shelves, installing cabinets, or mounting TVs. The hammering function can also be used to remove old tiles or linoleum from floors, making it easier to install new flooring.
In addition, spline rotary hammers can be used for outdoor projects such as building a patio or a deck. They can be used to drill holes in concrete footings for the installation of support posts, as well as to chisel and shape the concrete surface.
Industrial Applications
In industrial settings, spline rotary hammers are used for heavy – duty maintenance and repair tasks. They can be used to drill holes in large – scale concrete structures such as bridges, dams, and industrial buildings. The power and durability of these tools make them suitable for working in harsh industrial environments.
Spline rotary hammers are also used in the mining industry for drilling and blasting operations. They can be used to drill holes in rocks and ore to insert explosives, facilitating the extraction of valuable minerals.
Advantages of Spline Rotary Hammers
High – Power and Efficiency
One of the main advantages of spline rotary hammers is their high power and efficiency. The combination of rotational and hammering motions allows them to drill through hard materials much faster than regular drills. The powerful motors and efficient hammering mechanisms ensure that the tool can handle the toughest drilling and chiseling tasks with ease, saving time and effort for the user.
Versatility
Spline rotary hammers are highly versatile tools. They can be used for a wide range of applications, from drilling small – diameter holes in concrete walls to chiseling large pieces of concrete. The ability to adjust the tool’s settings to focus on either drilling or chiseling makes it suitable for various tasks, making it a valuable addition to any toolbox.
Durability
These tools are built to withstand the harsh conditions of construction, renovation, and industrial environments. The robust construction of the housing, the high – quality materials used in the motor and hammering mechanism, and the reliable spline connection all contribute to the durability of the spline rotary hammer. It can endure heavy use and repeated impacts without losing its performance, ensuring long – term reliability.
Precision and Control
Despite their high – power and heavy – duty nature, spline rotary hammers offer a good level of precision and control. The ergonomic design of the housing and the adjustable settings allow the user to have precise control over the tool’s operation. This is especially important when working on delicate tasks or when trying to achieve accurate drilling or chiseling results.
Disadvantages and Limitations
Noise and Vibration
One of the main disadvantages of spline rotary hammers is the high level of noise and vibration they produce during operation. The high – impact blows of the hammering mechanism generate significant noise, which can be a concern in residential areas or noise – sensitive environments. The vibration can also cause fatigue in the user’s hands and arms during long – term use, increasing the risk of musculoskeletal injuries.
Cost
Spline rotary hammers are generally more expensive than regular drills due to their specialized design and high – power components. The cost of purchasing a high – quality spline rotary hammer can be a significant investment, especially for DIY enthusiasts or small – scale contractors. Additionally, the replacement parts for these tools, such as drill bits and spare parts for the hammering mechanism, can also be relatively expensive.
Skill and Training
Using a spline rotary hammer requires a certain level of skill and training. The high – power and heavy – duty nature of the tool means that improper use can lead to accidents, such as flying debris or loss of control. Users need to be familiar with the proper operating procedures, including how to hold the tool securely, how to adjust the settings, and how to maintain a safe working distance.
Maintenance and Care
Cleaning
Regular cleaning of the spline rotary hammer is essential to ensure its proper operation and longevity. After each use, remove any dust, debris, and concrete chips from the tool’s exterior and interior parts. Use a soft brush or compressed air to clean the air vents, which are important for dissipating heat generated by the motor. Avoid using water or other liquids to clean the tool, as this can damage the electrical components.
Lubrication
Proper lubrication is crucial for the smooth operation of the hammering mechanism. Check the manufacturer’s recommendations for the type of lubricant to use. Apply the lubricant to the moving parts, such as the gears and pistons, at regular intervals. This helps to reduce friction and wear, ensuring the long – term performance of the tool.
Inspection and Replacement of Parts
Regularly inspect the spline rotary hammer for any signs of wear or damage. Check the drill bit for wear and replace it if it becomes dull or damaged. Inspect the chuck for any signs of looseness or misalignment and tighten or adjust it as necessary. Also, check the housing for any cracks or damage that could affect the tool’s safety and performance. Replace any worn or damaged parts promptly to prevent further damage to the tool.
Conclusion
In conclusion, the spline rotary hammer is a highly specialized and powerful tool that plays a crucial role in the construction, renovation, and industrial sectors. Its unique combination of rotational and hammering motions, high – power performance, and versatility make it an indispensable tool for a wide range of applications, from drilling holes in concrete to chiseling and breaking up hard materials.
