In the world of machining and drilling operations, the slot drill bit is a specialized tool that plays a crucial role in various industries. Whether you are working on metal fabrication, woodworking, or even in some electronics manufacturing processes, understanding the uses and features of a slot drill bit can greatly enhance your project outcomes. This article aims to provide a comprehensive overview of what a slot drill bit is used for, delving into its design, working principle, and the different applications it is suitable for.
Understanding the Slot Drill Bit
Design and Structure

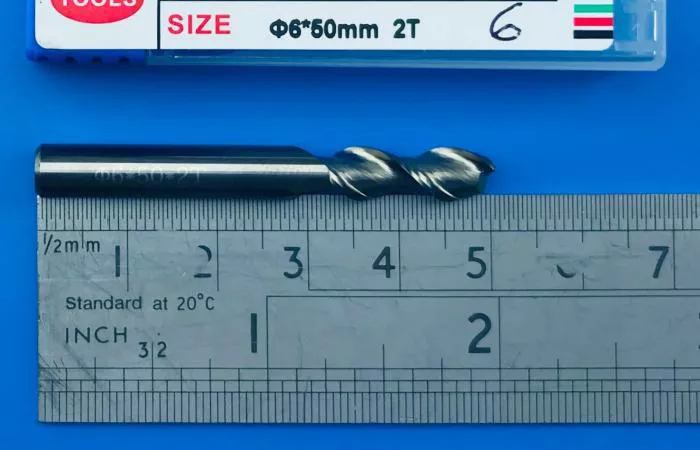

A slot drill bit is designed with a unique shape and structure that sets it apart from other types of drill bits. It typically has a cylindrical body with one or more cutting edges at the tip. The cutting edges are precisely engineered to create a specific type of cut, which is mainly a slot or a narrow groove in the workpiece.
The body of the slot drill bit is usually made of high – speed steel (HSS) or carbide. High – speed steel is a popular choice for many general – purpose drilling applications because it offers good wear resistance and toughness. Carbide – tipped slot drill bits, on the other hand, are more expensive but provide superior hardness and heat resistance, making them ideal for high – speed machining and tough materials.
Working Principle
When the slot drill bit is rotated at high speed by a drill press or a handheld drill, the cutting edges at the tip engage with the workpiece. As the bit penetrates the material, the cutting edges remove the excess material in the form of chips. The design of the slot drill bit ensures that these chips are efficiently evacuated from the cutting area, preventing them from interfering with the cutting process and maintaining the quality of the slot.
The angle of the cutting edges and the helix of the flute (the groove that runs along the length of the bit) are carefully designed to optimize the cutting performance. A proper helix angle helps in guiding the chips out of the hole and also affects the stability of the cutting process.
Applications in Metal Fabrication
Slotting in Machine Components
In metal fabrication, one of the primary uses of a slot drill bit is to create slots in machine components. These slots are essential for various purposes such as holding keys, which are used to transmit torque between shafts and gears. By using a slot drill bit, machinists can accurately cut slots of the required dimensions into shafts or pulleys.
For example, in an automotive engine, the crankshaft has slots where the connecting rod bearings are located. These slots need to be precisely machined to ensure proper alignment and smooth operation of the engine. A slot drill bit is used to create these slots with high accuracy, ensuring the reliability and longevity of the engine components.
Gear Manufacturing
Slot drill bits are also used in gear manufacturing. Gears often have slots for mounting on shafts or for connecting with other gears. The ability of a slot drill bit to create clean and precise slots is crucial in this application. The size and shape of the slot can affect the meshing of the gears, which in turn impacts the performance of the mechanical system.
In the aerospace industry, where high – precision gears are required for aircraft engines and landing gear systems, slot drill bits are used to machine these critical components. The strict tolerances and high – quality standards in aerospace manufacturing demand the use of reliable and accurate tools like slot drill bits.
Applications in Woodworking
Creating Mortises
In woodworking, a slot drill bit can be used to create mortises. A mortise is a rectangular slot cut into a piece of wood, usually to receive a tenon (a protruding part of another piece of wood) to form a joint. This type of joint is commonly used in furniture making, such as in the construction of chairs, tables, and cabinets.
A slot drill bit allows woodworkers to create mortises of different sizes and depths with relative ease. By using a drill press with a slot drill bit, woodworkers can achieve straight and consistent cuts, ensuring a strong and durable joint. For example, in a traditional mortise – and – tenon joint for a chair leg, a slot drill bit is used to cut the mortise in the chair frame, and then the tenon on the chair leg is precisely fitted into the mortise.
Inlay Work
Slot drill bits are also useful for inlay work in woodworking. Inlay involves embedding small pieces of contrasting materials, such as wood, metal, or shell, into a surface to create decorative patterns. To create the recesses for the inlay, a slot drill bit can be used to cut slots of the desired shape and size.
For instance, in a wooden jewelry box, a slot drill bit can be used to cut slots for mother – of – pearl inlays on the lid or sides. The precision of the slot drill bit ensures that the inlay fits perfectly into the slot, enhancing the aesthetic appeal of the box.
Applications in Electronics Manufacturing
Circuit Board Drilling
In the electronics manufacturing industry, slot drill bits are sometimes used for drilling holes on circuit boards. Although smaller drill bits are more commonly used for individual component mounting holes, slot drill bits can be used for creating larger slots on the circuit board.
These slots can be used for various purposes, such as mounting larger components, providing clearance for wiring, or creating ventilation channels. For example, in a power supply unit circuit board, a slot drill bit may be used to cut a slot for a heat sink mounting bracket, ensuring proper heat dissipation.
Cable Management
Slot drill bits can also contribute to cable management in electronic devices. By creating slots in the device casing, cables can be routed neatly inside, preventing them from getting tangled or damaged. This is especially important in complex electronic devices with a large number of internal components and cables.
Advantages of Using a Slot Drill Bit
Precision
One of the main advantages of a slot drill bit is its ability to provide high – precision cuts. The well – designed cutting edges and flute structure ensure that the slot is cut with consistent dimensions and a smooth finish. This precision is essential in applications where tight tolerances are required, such as in aerospace and electronics manufacturing.
Efficiency
Slot drill bits are designed to remove material efficiently. The cutting edges are optimized to cut through the workpiece quickly, reducing the time required for the drilling operation. Additionally, the efficient chip evacuation system of the slot drill bit helps to prevent clogging, which can further improve the drilling speed and efficiency.
Versatility
As mentioned earlier, slot drill bits can be used in a variety of materials, including metals, wood, and plastics. They can also be used for different types of applications, from creating simple slots in wood to machining complex components in metal fabrication and electronics. This versatility makes them a valuable tool in many industries.
Maintenance and Safety Considerations
Maintenance
To ensure the longevity and optimal performance of a slot drill bit, proper maintenance is essential. After each use, the bit should be cleaned to remove any chips or debris that may be stuck in the flute. This can be done using a brush or compressed air.
It is also important to regularly inspect the cutting edges for wear and damage. If the cutting edges are dull or damaged, the bit should be sharpened or replaced. Additionally, lubrication may be required for some types of slot drill bits, especially when cutting in metals, to reduce friction and heat buildup.
Safety
When using a slot drill bit, safety should always be a top priority. Wear appropriate personal protective equipment, such as safety glasses, ear protection, and gloves. Make sure that the workpiece is securely clamped to prevent it from moving during the drilling operation.
Follow the manufacturer’s instructions for the drill and the slot drill bit, including proper speed settings and feed rates. Never force the drill bit into the workpiece, as this can cause the bit to break or the drill to malfunction.
Conclusion
In conclusion, a slot drill bit is a highly versatile and useful tool in various industries. Its unique design and working principle make it suitable for a wide range of applications, from metal fabrication and woodworking to electronics manufacturing. The precision, efficiency, and versatility of slot drill bits allow machinists, woodworkers, and electronics manufacturers to achieve high – quality results in their projects.
