Honda lawnmowers are known for their reliability and efficiency. To keep them running at peak performance, regular maintenance is key. One of the most important steps in maintenance is ensuring your lawnmower has the correct amount and type of oil. This detailed guide will walk you through everything you need to know about oil capacity for various Honda lawnmower models.
Understanding the Importance of Oil in Lawn Mowers
Why Engine Oil Matters
Engine oil lubricates moving parts, reduces wear, and dissipates heat. Without proper lubrication, the engine can overheat and fail. Oil also helps clean the engine by carrying dirt and debris to the oil filter.
Consequences of Low or Excess Oil
Too little oil causes overheating and friction. Too much oil leads to foaming, reduced lubrication, and can even damage seals. Always use the recommended oil level for safe operation.
Honda Lawnmower Oil Capacity by Model
Honda HRX Series
The Honda HRX series, including HRX217VKA and HRX217HYA, typically requires 0.58 quarts (18.6 ounces or 0.55 liters) of SAE 10W-30 motor oil. These models feature a powerful GCV200 engine and benefit from routine oil changes to maintain performance.
Honda HRR Series
Models such as HRR216VKA and HRR216PKA use the GCV160 engine. These mowers need about 0.58 quarts (18.6 ounces or 0.55 liters) of SAE 10W-30 oil, similar to the HRX series. Always check the dipstick after filling to ensure accuracy.
Honda HRS and HRC Series
The commercial-grade HRC series and residential HRS mowers generally require 0.58 to 0.65 quarts, depending on the engine model. The GXV160 engine, common in the HRC216HXA, takes 0.65 quarts (20.8 ounces or 0.61 liters).
Mini 4-Stroke Engine Models
Some Honda walk-behind trimmers and specialty mowers use the Mini 4-Stroke engine. These units typically require 2.7 to 3.4 ounces of oil. Always refer to the owner’s manual for precision.
How to Check and Add Oil to Your Honda Lawnmower
Step 1: Prepare the Mower
Place the mower on a flat surface. Allow the engine to cool before checking the oil level. Use a clean rag and have your oil ready.

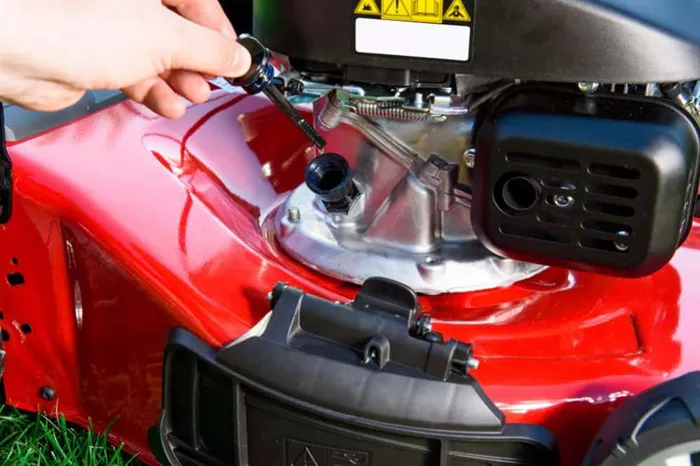

Step 2: Remove and Clean the Dipstick
Unscrew the oil cap/dipstick. Wipe it clean with a rag. Reinsert it fully, then remove it again to read the oil level. The oil should be at or near the top mark.
Step 3: Add Oil
If the oil is low, add SAE 10W-30 oil slowly. Pour in small increments to avoid overfilling. Recheck the level with the dipstick after each addition.
Choosing the Right Type of Oil for Honda Lawnmowers
Recommended Oil Type
Honda recommends SAE 10W-30 motor oil for most of its lawnmowers, especially in temperate climates. This type of oil offers protection across a broad range of temperatures.
Alternatives for Extreme Climates
In very cold areas, use 5W-30 for better flow at startup. In extremely hot environments, SAE 30 can provide better high-temperature protection.
Conventional vs. Synthetic Oil
Both are acceptable. Synthetic oil provides better performance in extreme conditions and longer intervals between changes. However, either type should meet API service classification SJ or later.
How Often Should You Change the Oil?
Initial Break-In Period
After the first 5 hours of use, change the oil. This flushes out initial debris and particles from the engine’s break-in period.
Routine Maintenance Schedule
For regular use, change the oil every 25-50 hours of operation or at least once per mowing season. Commercial users should change oil more frequently.
Visual Signs of Oil Issues
If the oil appears black, thick, or smells burnt, it’s time to change it. Also, if performance drops, the oil might be the issue.
How to Drain Old Oil from a Honda Lawnmower
Step 1: Warm Up the Engine
Run the mower for a few minutes. Warm oil drains faster and removes more contaminants.
Step 2: Turn Off and Remove the Spark Plug Wire
This prevents accidental starts during the maintenance process. Always work safely.
Step 3: Drain the Oil
Tip the mower carefully onto its side with the air filter facing up. Drain the oil into a container from the fill port or drain plug (if equipped).
Step 4: Refill with Fresh Oil
Use a funnel to avoid spills. Fill slowly, check frequently with the dipstick. Don’t overfill.
Common Mistakes to Avoid
Using the Wrong Oil Type
Always use oil recommended by Honda. Avoid automotive oils with additives that may harm small engines.
Overfilling the Oil
Excess oil can damage the engine. Always check with the dipstick and stay within the correct range.
Neglecting Regular Changes
Old, dirty oil compromises performance and can lead to costly repairs. Stick to the maintenance schedule.
Proper Storage and Seasonal Maintenance
End-of-Season Prep
Before storing for the winter, change the oil. This prevents corrosive buildup. Also, drain fuel or use a stabilizer.
Spring Startup Tips
Check the oil level before the first mow. Top off or change if necessary. Inspect air filters and spark plugs too.
Tools and Accessories for Oil Maintenance
Useful Maintenance Tools
- Oil drain pan
- Funnel
- Gloves
- Measuring cup
- Rags
Spare Parts and Storage Tips
Stock up on engine oil and spark plugs during the off-season. Store your mower in a dry, covered location.
Conclusion
Maintaining the right oil level in your Honda lawnmower is essential for durability and performance. Whether you’re using the HRX, HRR, or HRC series, most models require 0.58 quarts of SAE 10W-30 oil. Always check your manual and stick to regular maintenance intervals. With proper care, your mower will serve you for years.
