Lawn mowers are essential for maintaining a tidy yard. However, when the recoil starter stops working properly, it can be frustrating. One common issue is a faulty recoil spring. In this detailed guide, you’ll learn how to fix a recoil spring on a lawn mower step by step. We’ll cover everything from identifying the problem to making repairs safely. Whether you’re a beginner or experienced DIYer, this article will help you get your mower running again.
Common Recoil Spring Issues
Understanding the problem is the first step toward a solution. Here are common issues you might face with a lawn mower recoil spring:
Broken Spring
Over time, the metal in the spring can fatigue and break. A broken spring won’t retract the pull cord, making it impossible to start the mower.
Loss of Tension
Sometimes the spring may lose its tension. The pull cord might not rewind completely, or it may feel loose.
Difficulty Retracting Pull Cord
If the pull cord doesn’t retract smoothly or feels stuck, there may be debris inside the housing, or the spring may be misaligned.
- Symptoms to Watch For
- Pull cord does not retract
- Cord retracts slowly or partially
- Recoil handle hangs loosely
- Strange noises when pulling the cord
- Engine does not start despite several pulls
Safety Precautions
Before starting any repair, follow these safety measures:
Disconnect the Spark Plug: This prevents the engine from accidentally starting while you’re working.
Stabilize the Mower: Place the mower on a flat surface. If needed, use wheel chocks to prevent movement.
Wear Safety Gear: Use gloves and safety glasses to protect your hands and eyes.
Work in a Well-Lit Area: Good visibility helps you avoid mistakes and improves safety.
Troubleshooting Steps
Here’s a methodical way to troubleshoot the recoil spring:
Step 1: Remove the Starter Assembly
Use a screwdriver to remove the bolts or screws that hold the starter housing in place. Set them aside in a safe spot.
Step 2: Inspect the Recoil Spring
Carefully look inside the starter housing. Check if the spring is broken, bent, or has come loose from its anchor point.
Step 3: Check the Pull Cord
Look for fraying, knots, or breaks in the cord. A damaged cord can affect how the spring functions.
Step 4: Examine the Housing
Debris or dirt inside the housing can restrict spring movement. Clean out any grime using a dry cloth or brush.

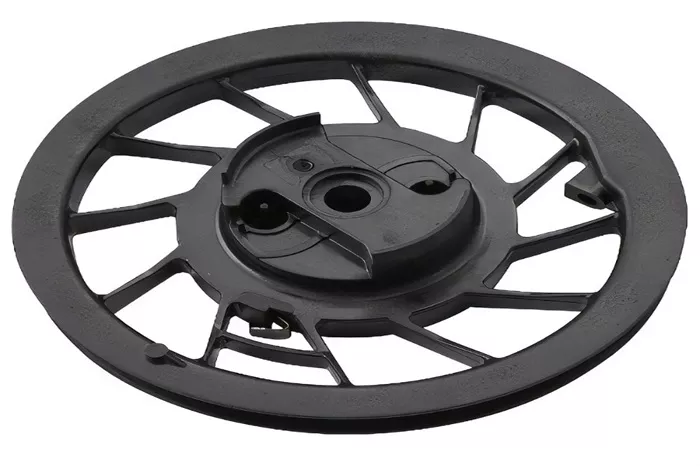

Step 5: Rotate the Pulley Manually
Try turning the pulley to feel for resistance. If there is no tension or it spins too freely, the spring may be disconnected or broken.
Repair Instructions
Let’s walk through three common recoil starter repairs:
Replacing a Damaged Recoil Spring
Remove the Old Spring: Carefully unwind the broken spring using pliers. Be cautious—it can snap back.
Match the Replacement: Ensure the new spring matches the size and shape of the old one.
Install the New Spring: Insert the inner end of the spring into the starter hub, then wind the outer end into place.
Test Tension: Turn the pulley to check that the spring builds tension.
Reassemble the Starter: Reattach the pulley and cord, then reinstall the starter housing.
Re-Tensioning the Spring
Remove Starter Housing: Use a screwdriver to open the housing.
Wind the Spring: Turn the pulley in the direction it normally rotates to build tension.
Hold the Tension: While holding the tension, thread the pull cord through the pulley.
Secure the Cord: Tie a knot to hold the cord in place.
Release Pulley Slowly: Let it retract the cord gradually.
Replacing or Reattaching the Pull Cord
Remove Old Cord: Pull out the damaged or frayed cord.
Measure a New Cord: Use the old cord as a reference. Cut a similar length of new starter rope.
Thread the Cord: Insert one end through the recoil handle and knot it. Feed the other end through the starter pulley.
Wind the Pulley: Turn the pulley to add tension, then let it retract the cord.
Reinstall the Housing: Bolt the starter assembly back onto the mower.
Tips for Specific Mower Models
Briggs & Stratton: Their housings are usually easy to remove, but the springs can be tightly wound. Handle with care.
Honda: The pulleys may require aligning tabs. Be patient when seating the spring.
Toro: Use a flathead screwdriver to help seat the new spring into the groove.
Tools and Materials Needed
Before you begin, gather these essentials:
- Flathead screwdriver
- Phillips screwdriver
- Pliers (needle-nose preferred)
- Replacement recoil spring
- New starter cord (if needed)
- Utility knife or scissors
- Lubricant (like WD-40)
- Safety gloves and glasses
- Socket set (for bolts)
- Clean rag or cloth
Maintenance Tips
Proper maintenance can prevent most recoil starter issues:
Clean Regularly: Keep the starter housing free of dirt and grass clippings.
Lubricate Moving Parts: Use light oil or spray lubricant on the pulley and spring.
Store in a Dry Place: Avoid moisture that can lead to rust.
Check the Cord: Inspect for fraying or damage after each use.
Use Proper Technique: Don’t yank the cord too hard or at an angle.
When to Seek Professional Help
Some issues are better handled by a technician:
Severely Damaged Housing: Cracked or warped plastic may need full replacement.
Stripped or Rusted Bolts: If you can’t remove them without damage, seek help.
Complex Models: Some mowers have integrated electronics or unique starter designs.
Repeated Failures: If you’ve replaced parts multiple times with no success.
A repair shop can save you time and prevent further damage.
Conclusion
Fixing a recoil spring on a lawn mower is a task many DIYers can handle with a bit of patience and the right tools. By identifying the issue, following safety guidelines, and performing step-by-step repairs, you can restore your mower’s starting mechanism efficiently. Regular maintenance will keep the recoil spring in good shape and prevent future problems. If you ever feel unsure, don’t hesitate to contact a professional.
Use this guide the next time your lawn mower’s pull cord won’t cooperate—and get back to mowing in no time!
