Lawn mowers are an essential tool for maintaining a neat and tidy lawn. Whether you have a small yard or a large one, a functional lawn mower is key to getting the job done efficiently. However, just like any piece of machinery, lawn mowers can experience problems—one of the most common being issues with the transmission. The transmission plays a crucial role in the mower’s operation, controlling how power is transferred to the wheels and affecting the mower’s movement. If your lawn mower is having trouble moving, slipping, or making strange noises, the transmission may be to blame. In this guide, we’ll walk you through how to diagnose and fix common lawn mower transmission problems and provide tips for preventing future issues.
The Role of the Transmission in a Lawn Mower
The transmission in a lawn mower is responsible for transferring power from the engine to the wheels. It enables the mower to move forward and backward, and depending on the type of mower, it can help control the speed of the mower as well. The transmission essentially acts as the “link” between the engine and the wheels, ensuring that the mower operates smoothly.
Without a functioning transmission, your mower will struggle to move or may not move at all. Therefore, understanding how it works and how to maintain it is key to keeping your lawn mower running efficiently.
Different Types of Lawn Mower Transmissions
There are several types of transmissions commonly found in lawn mowers, each offering different features and benefits. The most common types include:
Manual Transmission
A manual transmission requires the operator to shift gears manually. It gives the operator full control over the mower’s speed and power. Manual transmissions are common in smaller, more basic lawn mowers.
Hydrostatic Transmission
Hydrostatic transmissions use fluid pressure to transfer power. This type of transmission provides smooth, variable speed control without the need for gear shifting. Hydrostatic transmissions are often found in more advanced, high-end mowers.
Gear-Driven Transmission
A gear-driven transmission uses a set of gears to transfer power. This type of transmission is common in mid-range lawn mowers and offers a balance between manual and hydrostatic transmissions. It usually requires the operator to shift gears.
Belt-Driven Transmission
A belt-driven transmission uses a belt to transfer power from the engine to the wheels. It’s common in push and self-propelled mowers. Belt-driven systems are often easier to repair but may require more frequent maintenance than hydrostatic systems.
Each type of transmission comes with its own set of advantages and potential issues. Understanding the type of transmission your mower uses can help you diagnose problems more effectively.
Common Transmission Problems
Just like any other part of your lawn mower, the transmission can experience wear and tear over time. Here are some of the most common transmission problems:
1. Slipping Gears
One of the most common signs of a transmission issue is slipping gears. This occurs when the mower’s gears fail to stay in place and slip out of position. This can cause the mower to lose power or struggle to move.
Symptoms
The mower moves slower than usual.
The mower jumps in and out of gear while operating.
You may hear grinding or whining noises when the mower moves.
2. Unusual Noises
Strange or unusual noises coming from the transmission area can indicate that something is wrong. These noises can range from grinding sounds to whining or squealing.
Symptoms
Grinding or squealing sounds while the mower is in gear.
The mower makes a noise but doesn’t move smoothly.
3. Difficulty Moving
If your mower has difficulty moving, it could be a sign that the transmission is not engaging properly. This can happen if there is a problem with the transmission fluid, a broken belt, or worn-out gears.
Symptoms
The mower struggles to move forward or backward.
The mower may stall or stop completely.
4. Leaking Transmission Fluid
Hydrostatic transmissions rely on fluid to operate smoothly. If you notice transmission fluid leaking from your mower, it’s important to address the issue immediately, as low fluid levels can cause damage to the system.
Symptoms
Puddles of transmission fluid under the mower.
The mower moves sluggishly or not at all.
Tools and Materials Needed
Before you begin repairing your lawn mower transmission, it’s important to have the right tools and materials on hand. Here’s a checklist of items you’ll need for the job:
Essential Tools
- Wrenches (including socket wrenches)
- Screwdrivers (Phillips and flathead)
- Pliers
- Ratchet set
- Transmission fluid (specific to your mower’s transmission type)
- Gear grease (if needed)
- Drain pan for fluid (for hydrostatic transmission systems)
- Belt tension gauge (if you need to replace a belt)
- Work gloves and safety glasses
Replacement Parts
- Transmission fluid (if needed)
- Transmission seals
- Belts (if broken or worn)
- Gears (if worn or damaged)
- Fluid filter (if your mower uses one)
Make sure to consult your lawn mower’s user manual for specific parts and fluids required for your model.
Step-by-Step Repair Guide
If you’ve diagnosed a transmission issue and have the right tools, it’s time to get started. Follow this detailed, step-by-step guide to fix the transmission of your lawn mower.
Step 1: Safety First
Before doing any repair work, always ensure your safety. Disconnect the spark plug to prevent accidental starting. Place the mower on a flat, stable surface, and wear protective gloves and safety glasses throughout the process.
Step 2: Diagnose the Problem
Start by identifying the symptoms of the transmission issue. Is the mower slipping gears, making unusual noises, or having difficulty moving? Once you have an idea of the problem, inspect the transmission system.
Check the fluid levels (for hydrostatic transmissions).
Inspect the belts and gears for signs of wear.
If the mower is making strange noises, listen closely to pinpoint the source of the sound.
Step 3: Check the Transmission Fluid (Hydrostatic Models)
For hydrostatic mowers, check the transmission fluid. If the fluid level is low, refill it with the appropriate type of transmission fluid for your mower. If the fluid is dirty or contaminated, it may be time to replace it.
Locate the transmission fluid reservoir.
Drain the old fluid into a pan (if necessary).
Refill the reservoir with fresh fluid.
Check for leaks around the seals and hoses.
Step 4: Inspect and Replace the Belts
If your mower uses a belt-driven transmission, inspect the belts for damage or wear. A worn or broken belt can cause the mower to lose power or struggle to move.
Locate the transmission belts and carefully remove any covering or housing around them.
Inspect the belts for fraying or cracks.
If the belts are damaged, remove the old belts and replace them with new ones. Make sure the new belts are properly tensioned and aligned.

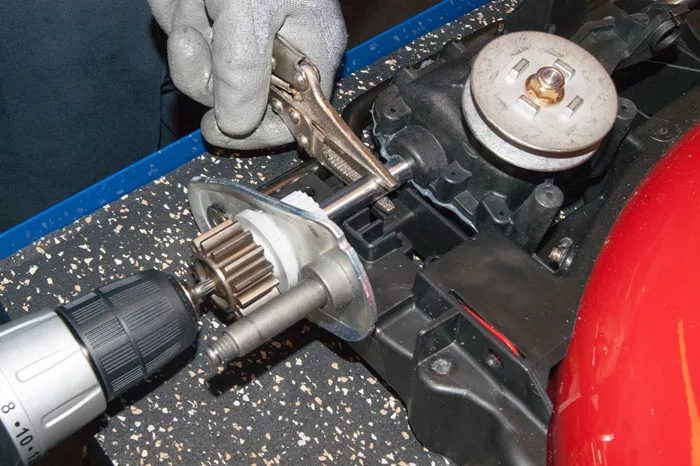

Step 5: Inspect and Replace the Gears (If Needed)
If the mower is still not functioning properly, you may need to inspect and replace the gears. Worn gears can cause slipping and poor performance.
Remove the cover or housing that covers the gears.
Inspect the gears for signs of wear or damage.
If the gears are damaged, replace them with new ones and ensure they mesh properly.
Step 6: Test the Mower
Once the repairs are complete, reassemble the mower and reconnect the spark plug. Test the mower by running it in a controlled area. Check for smooth movement and listen for any unusual sounds. If the mower operates correctly, you’ve successfully repaired the transmission.
Preventative Maintenance Tips
Taking care of your mower’s transmission can prevent future issues and extend the life of your mower. Here are some maintenance tips to keep your transmission in top shape:
Check Fluid Levels Regularly
For hydrostatic transmissions, always check the fluid levels before each use. Low or dirty fluid can cause the transmission to fail.
Inspect Belts and Gears
Regularly inspect the belts and gears for signs of wear. If you notice any damage, replace the parts promptly to prevent further damage to the transmission.
Clean the Transmission Components
Dirt and debris can build up in the transmission system, causing it to work less efficiently. Clean the transmission components regularly to keep them free of obstructions.
Lubricate Moving Parts
Lubricate the gears and other moving parts in the transmission system to reduce friction and wear.
Store Your Mower Properly
When not in use, store your mower in a dry, sheltered place to prevent exposure to the elements, which can cause damage to the transmission and other components.
Conclusion
Fixing a lawn mower transmission can seem like a daunting task, but with the right tools and knowledge, it’s a manageable job. By following this step-by-step guide, you can diagnose and repair common transmission issues, ensuring your lawn mower operates smoothly for years to come. Remember, regular maintenance is key to avoiding future transmission problems. Keep your mower in top condition, and it will continue to serve you well as you maintain your lawn.
